Connect via HTTPS

Configure your agentgateway proxy to connect to an MCP server by using the HTTPS protocol.

About this guide

In this guide, you configure your agentgateway proxy to connect to the remote GitHub MCP server by using the HTTPS protocol. The server allows you to interact with GitHub repositories, issues, pull requests, and more. All connections to the server must be secured via HTTPS and a GitHub access token must be provided for authentication.

Before you begin

Set up an agentgateway proxy.

Connect to the MCP server

  1. Create a personal acess token in GitHub and save it in an environment variable. For more information, see the GitHub docs.

    export GH_PAT=<personal-access-token>

  2. Create a Backend for the remote GitHub MCP server. The server requires you to connect to it by using the HTTPS protocol. Because of that, you set the mcp.targets.static.port field to 443.

    kubectl apply -f- <<EOF
apiVersion: gateway.kgateway.dev/v1alpha1
kind: Backend
metadata:
  name: github-mcp-backend
  namespace: kgateway-system
spec:
  type: MCP
  mcp:
    targets:
    - name: mcp-target
      static:
        host: api.githubcopilot.com
        port: 443
        path: /mcp/
EOF

  3. Create a BackendTLSPolicy to configure your agentgateway to connect to your Backend by using HTTPS. To validate the MCP server’s TLS certificate, you use the well-known system CA certificates.

    kubectl apply -f- <<EOF
apiVersion: gateway.networking.k8s.io/v1alpha3
kind: BackendTLSPolicy
metadata:
  name: github-mcp-backend-tls
  namespace: kgateway-system
spec:
  targetRefs:
    - name: github-mcp-backend
      kind: Backend
      group: gateway.kgateway.dev
  validation:
    hostname: api.githubcopilot.com
    wellKnownCACertificates: System
EOF

  4. Create an HTTPRoute that routes traffic to the GitHub MCP server along the /mcp-github path. To properly connect to the MCP server, you must allow traffic from http://localhost:8080, which is the domain and port you expose your agentgateway proxy on later. If you expose the proxy under a different domain, make sure to add this domain to the allowed origins. Because the MCP server also requires a GitHub access token to connect, you set the Authorization header to the token that you created earlier.

    kubectl apply -f- <<EOF
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: mcp-github
  namespace: kgateway-system
spec:
  parentRefs:
  - name: agentgateway
  rules:
    - matches:
        - path:
            type: PathPrefix
            value: /mcp-github
      filters:
        - type: CORS
          cors:
            allowHeaders:
              - "*"
            allowMethods:
              - "*"
            allowOrigins:
              - "http://localhost:8080"
        - type: RequestHeaderModifier
          requestHeaderModifier:
            set:
              - name: Authorization
                value: "Bearer ${GH_PAT}"
      backendRefs:
      - name: github-mcp-backend
        group: gateway.kgateway.dev
        kind: Backend
EOF

Verify the connection

Use the MCP Inspector tool to verify that you can connect to your sample MCP server through agentgateway.

  1. Get the agentgateway address.

    export INGRESS_GW_ADDRESS=$(kubectl get gateway agentgateway -n kgateway-system -o=jsonpath="{.status.addresses[0].value}")
echo $INGRESS_GW_ADDRESS
    kubectl port-forward deployment/agentgateway 8080:8080 -n kgateway-system

  2. From your terminal, run the MCP Inspector command to open the MCP Inspector in your browser. If the MCP inspector tool does not open automatically, run mcp-inspector.

    npx modelcontextprotocol/inspector#0.16.2

  3. From the MCP Inspector menu, connect to your agentgateway address as follows:

    • Transport Type: Select Streamable HTTP.
    • URL: Enter the agentgateway address, port, and the /mcp-github path. If your agentgateway proxy is exposed with a LoadBalancer server, use http://<lb-address>:8080/mcp-github. In local test setups where you port-forwarded the agentgateway proxy on your local machine, use http://localhost:8080/mcp-github.
    • Click Connect.

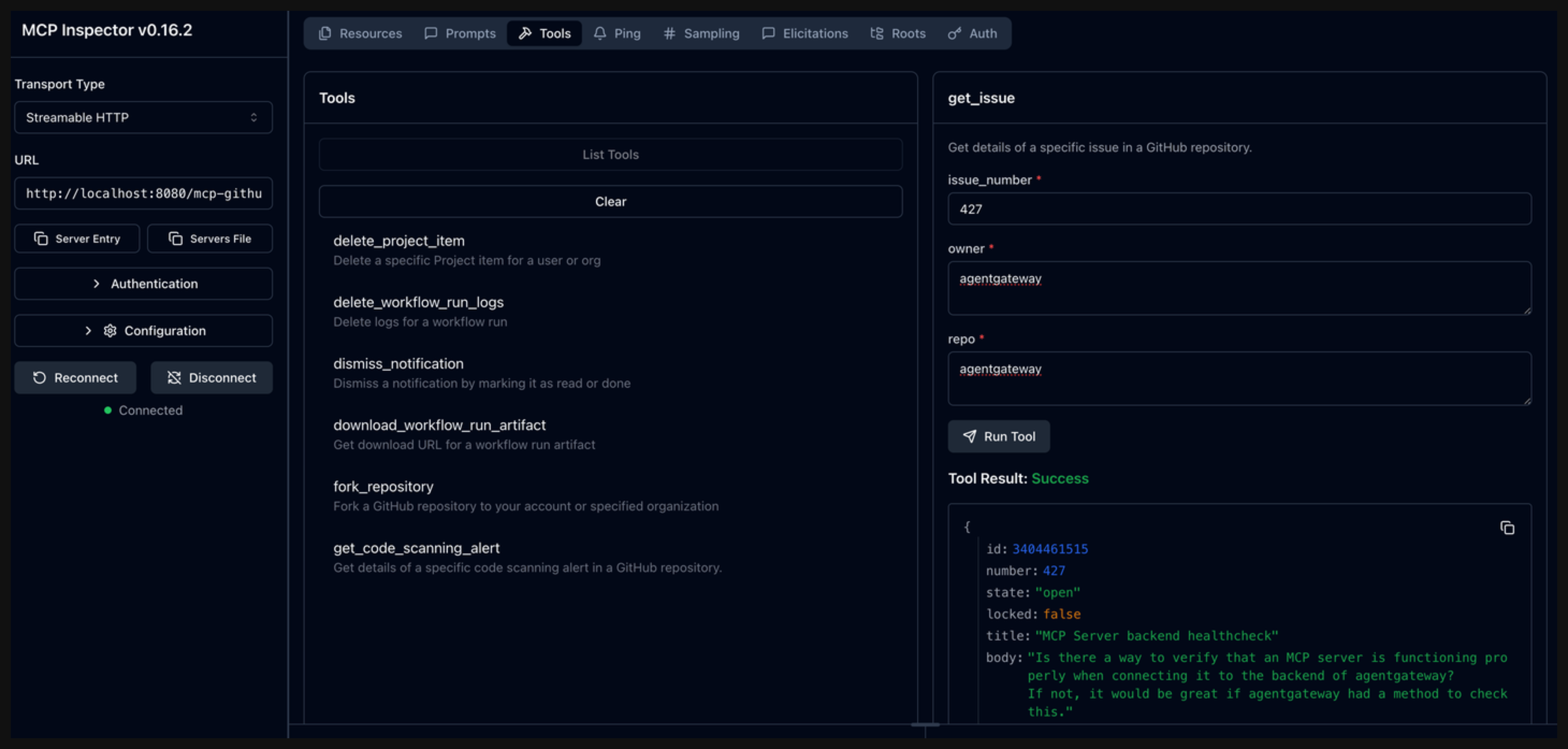

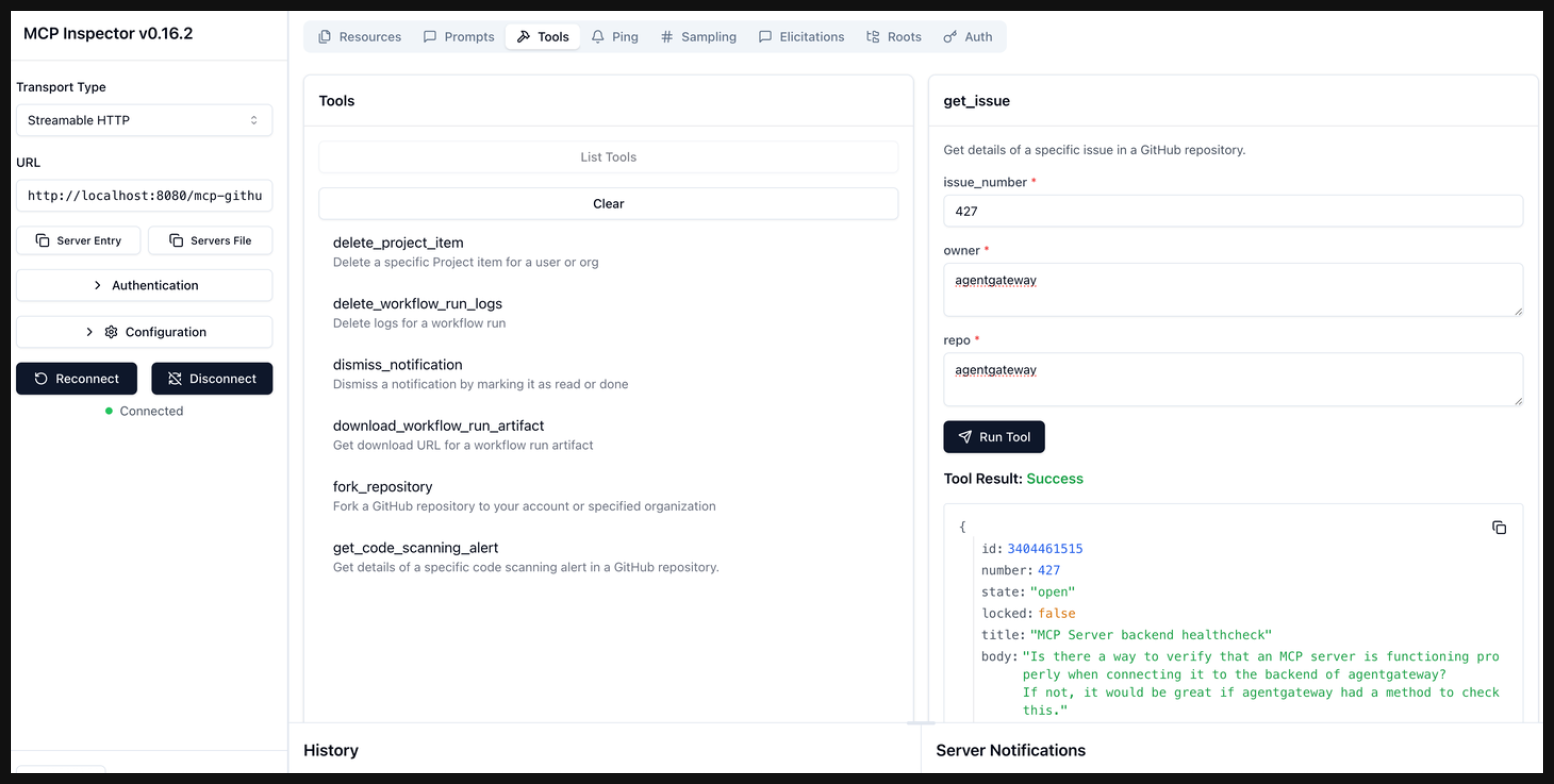

  4. From the menu bar, click the Tools tab. Then from the Tools pane, click List Tools and select the get_issue tool.

  5. From the get_issue pane, enter the following details, and click Run Tool.

    • issue_number: 427
    • owner: agentgateway
    • repo: agentgateway

  6. Verify that you get back the fetched issue content.

Cleanup

You can remove the resources that you created in this guide.
kubectl delete Backend github-mcp-backend -n kgateway-system
kubectl delete BackendTLSPolicy github-mcp-backend-tls -n kgateway-system
kubectl delete HTTPRoute mcp-github -n kgateway-system
